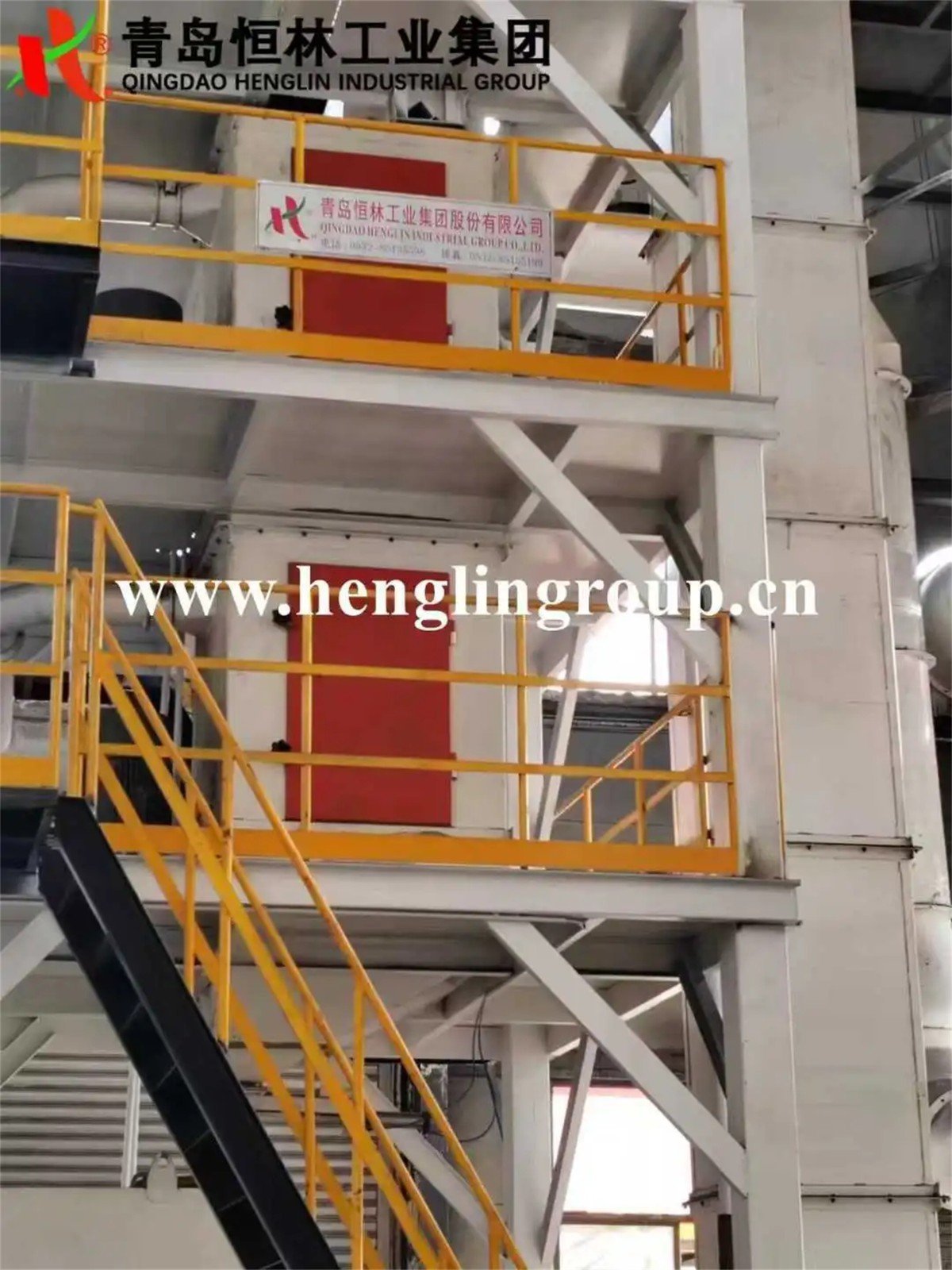

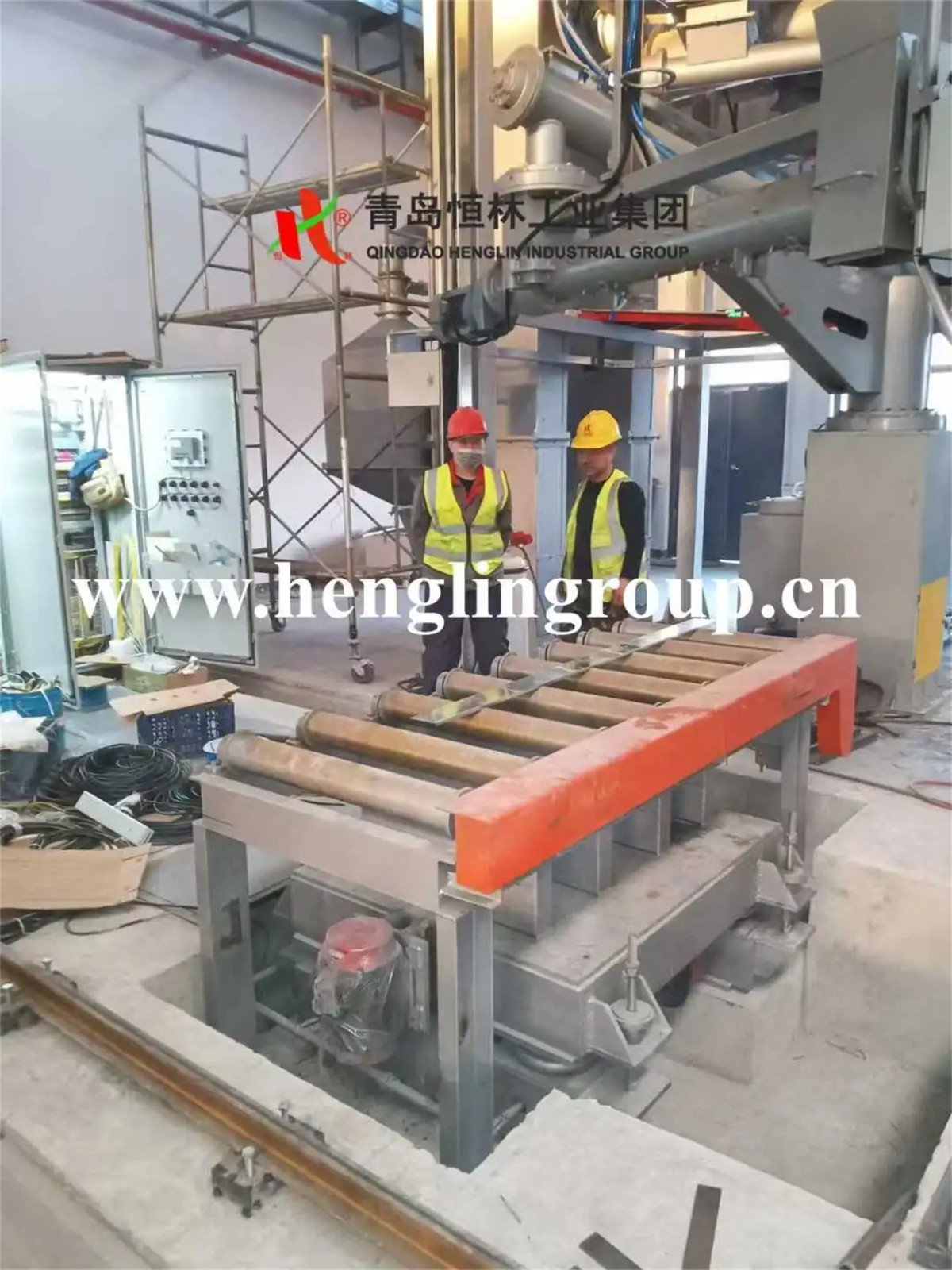

the 4th batch of shipment of no-bake XTS process,  Alpha-set equipment on 29th April 2025.

The line is used to manufacture the steel castings, stainless steel valves and pumps.



1. General description:



The system is designed as per the furan resin sand molding technologyby using the current sand reclamation systemto add sand shakeoutdust collecting of the sand shakeoutto transfer the sand to the current sand reclamation station. The molding line is used one automatic line, the sand for sand mixer is transferred by the current pneumatic way. One set of core making system.



2. The main specification

1Working flow

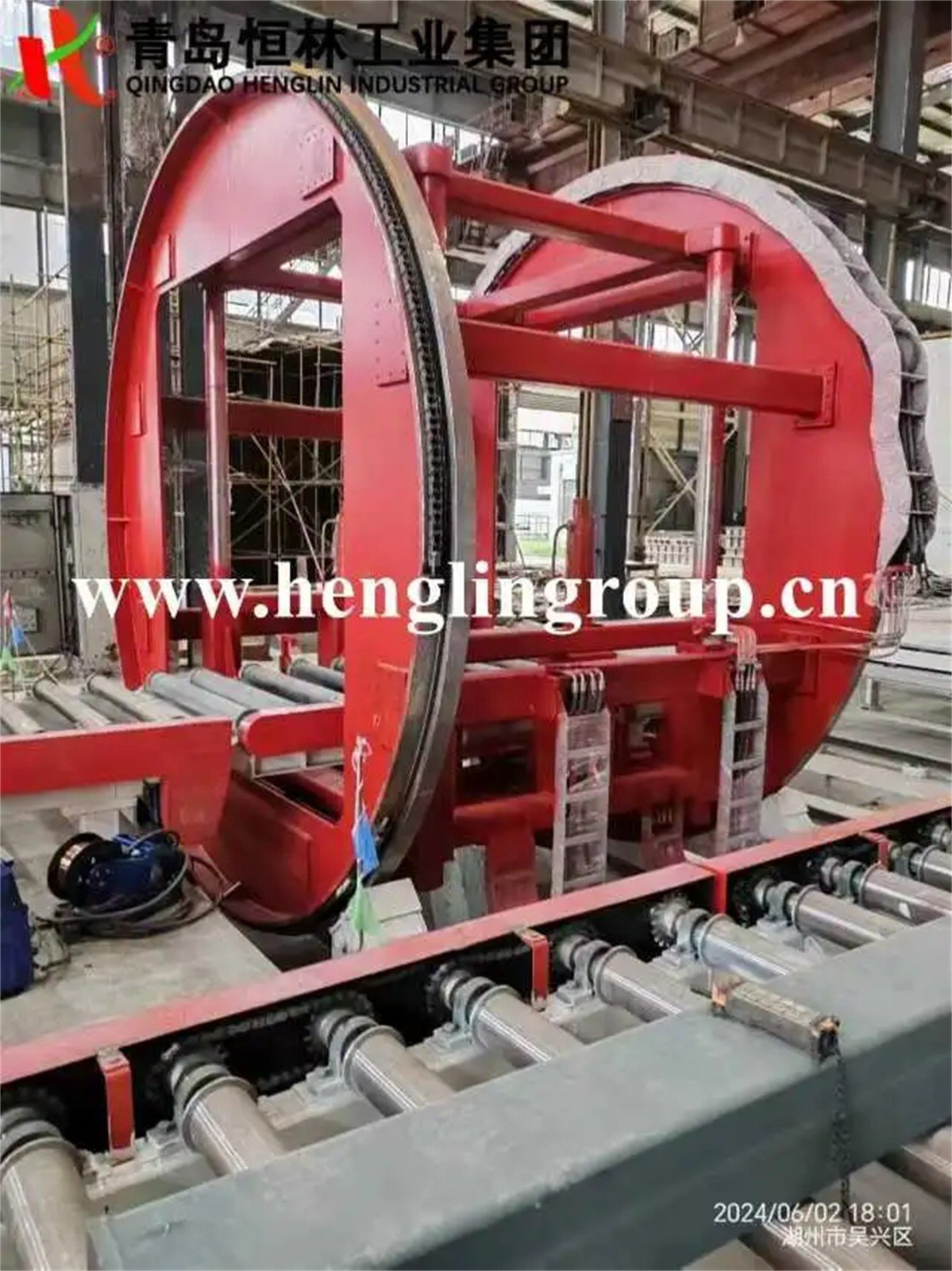

Inner size of sand flask at the molding loop station1700×700×600 mm,(on the bottom plate of 2200X1200mm),the molding efficiency : 12-16  half molds/h. Mold flipping and turnover machinestructure of 4 guide rodsloading capacity: 5t.

Core makingbucket elevator, sand hopper, 3t/h capacity sand mixer.

Sand shakeout and crusher: table size of 2.0*1.4mloading capacity : 5T.









(2)design introduction:

 The system is using furan resin molding technology, consist of old sand shakeout and crushing system, molding system and core making system.





old sand shakeout and crushing system:

sand shakeout and crushingbucket elevatormagneticsand hopperpneumatic conveyingcurrent sand reclamation.

Core making system:

Elevatorsand hoppersand mixer
