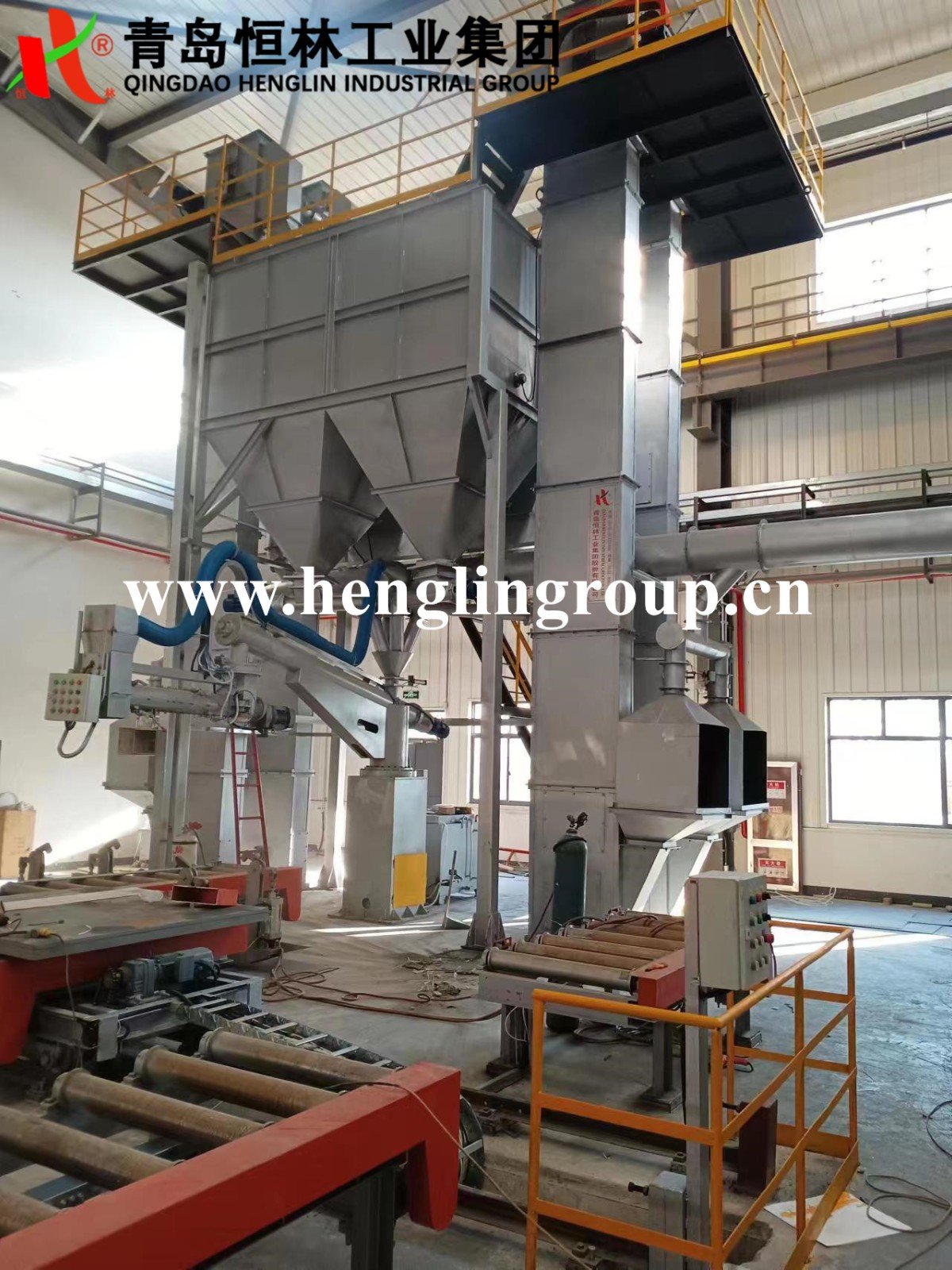

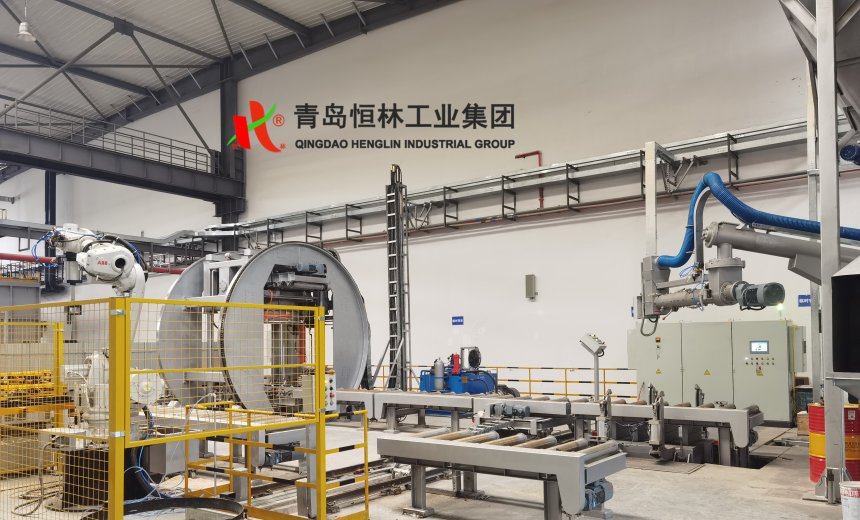

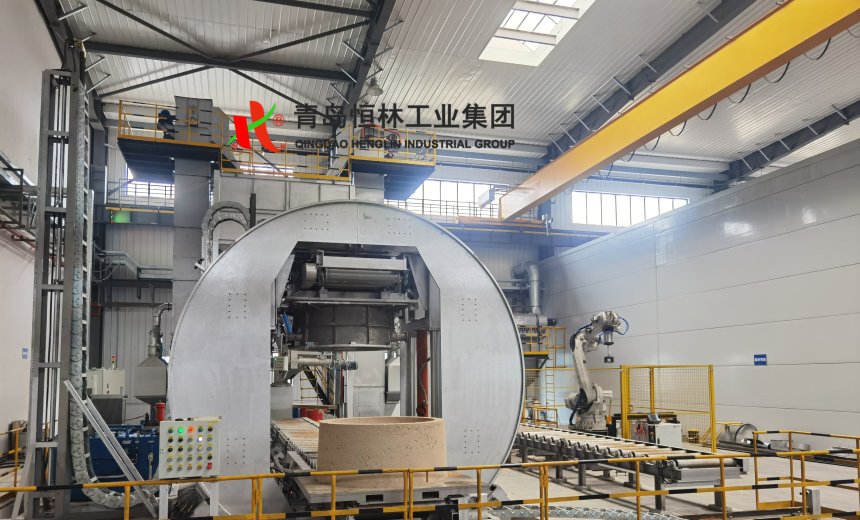

Resin sand / sodium silicate-bonded sand molding line mainly consists of sand shakeout machine, vibration conveyor, magnetic separator, plate chain type elevator, vibrating sand crusher, vortex type sand regeneration machine , rubbing regeneration machine, sand temperature regulator, continuous resin sand mixing machine, bucket elevator, sand hopper, pulsed bag type dust collector, etc., equipped with PLC electronic control system, material level sensors, air control system to realize automatic operation, the reasonable layout, compactible structure, high productivity which can meet different customers requirements.

1. General description:



The system is designed as per the furan resin sand molding technologyby using the current sand reclamation systemto add sand shakeoutdust collecting of the sand shakeoutto transfer the sand to the current sand reclamation station. The molding line is used one automatic line, the sand for sand mixer is transferred by the current pneumatic way. One set of core making system.



2. The main specification

1Working flow

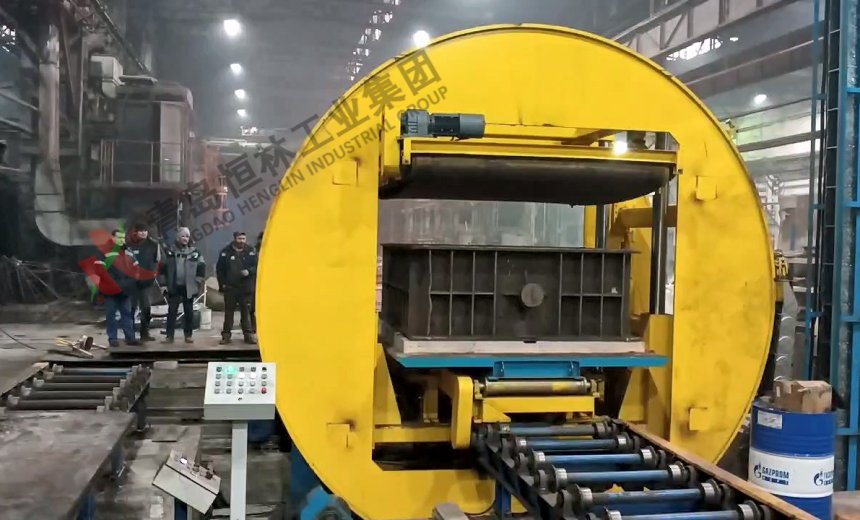

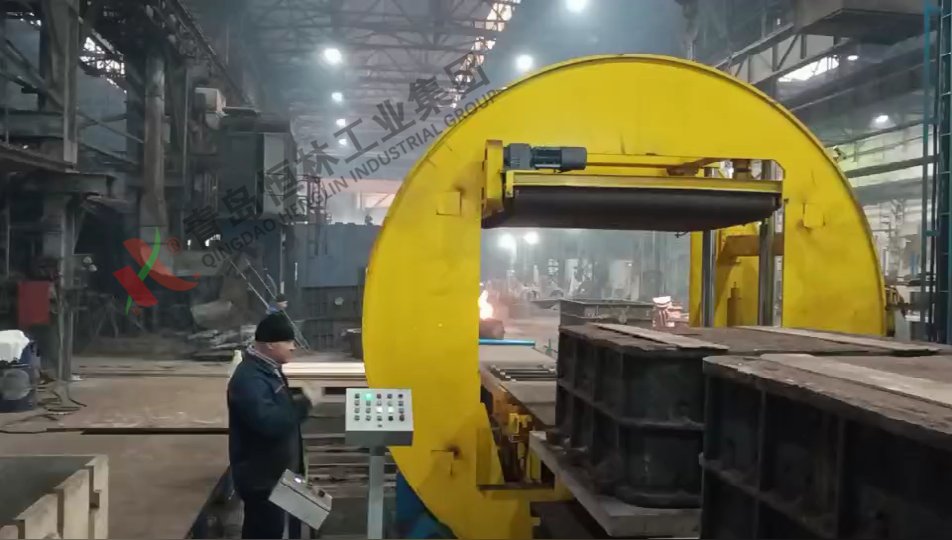

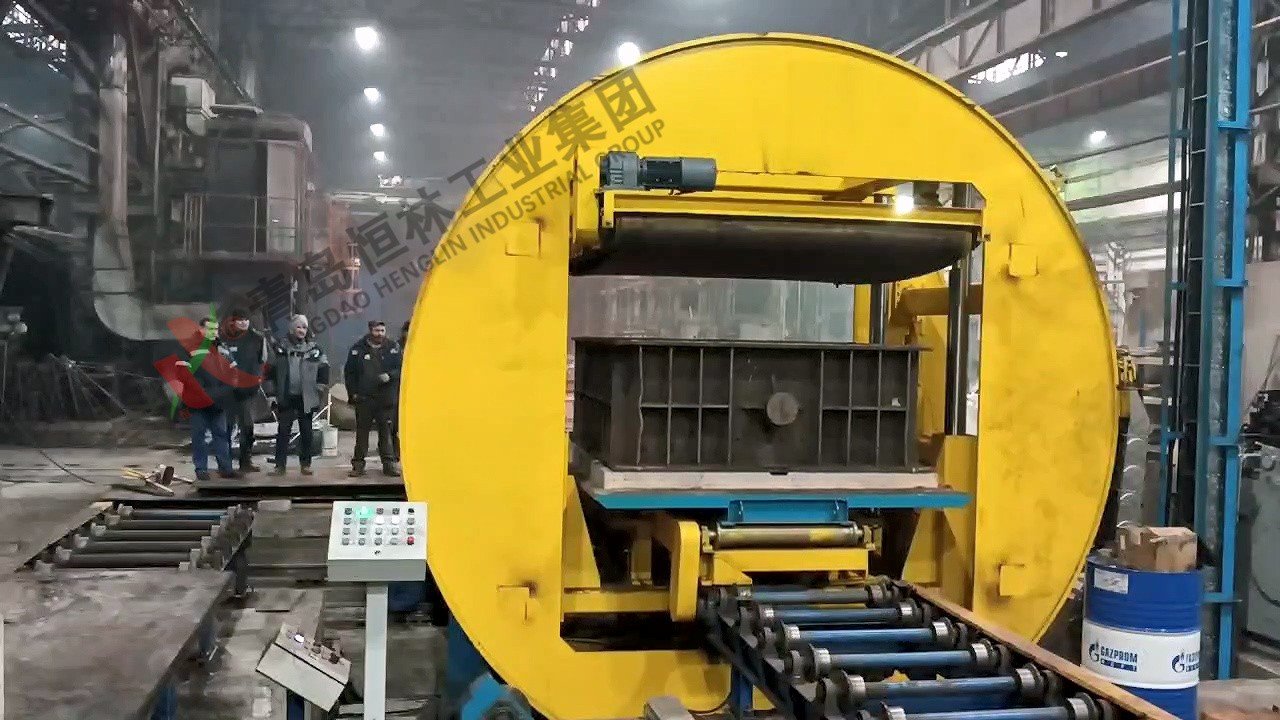

Inner size of sand flask at the molding loop station1700×700×600 mm,(on the bottom plate of 2200X1200mm),the molding efficiency : 12-16  half molds/h. Mold flipping and turnover machinestructure of 4 guide rodsloading capacity: 5t.

Core makingbucket elevator, sand hopper, 3t/h capacity sand mixer.

Sand shakeout and crusher: table size of 2.0*1.4mloading capacity : 5T.




(2)design introduction:

 The system is using furan resin molding technology, consist of old sand shakeout and crushing system, molding system and core making system.





old sand shakeout and crushing system:

sand shakeout and crushingbucket elevatormagneticsand hopperpneumatic conveyingcurrent sand reclamation.

Core making system:

Elevatorsand hoppersand mixer
